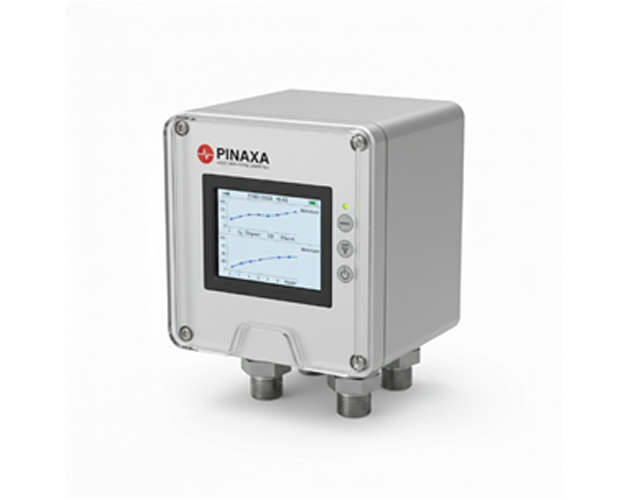

Pinaxa Hydro Gas 1011 genX
Pinaxa Hydro Gas 1011 genX Multi-Gas Intelligence
The Flagship Solution for Transformer Condition Monitoring
The Pinaxa Hydro Gas 1011 genX is a maintenance-free, full-range online DGA system. It combines Near-Infrared (NIR) spectroscopy with vacuum-protected headspace gas extraction, eliminating the need for membranes and delivering the highest diagnostic resolution for critical transformer assets.
Comprehensive 11-Gas & Moisture Analysis
Individual ppm measurement of all key gases:
- Hydrogen (H₂)
- Carbon Monoxide (CO) & Carbon Dioxide (CO₂)
- Thermal Gases: CH₄, C₂H₆, C₂H₄, C₃H₈
- Critical Fault Gases: C₂H₂, O₂, N₂
- Moisture (H₂O): Absolute and relative moisture (mineral & ester oils)
Technical Specifications (genX Standard)
| Feature | Specification |
|---|---|
| Analysis Technology | Near-Infrared (NIR) & micro-electronic sensors |
| Extraction Method | Headspace principle (membrane-free, negative-pressure-proof) |
| Display | 7” TFT capacitive touchscreen (800 × 480 px) |
| H₂ Measurement Range | 0 … 10,000 ppm |
| Accuracy (H₂) | ±10% ±20 ppm |
| Power Consumption | Max. 340 VA |
| Housing | Aluminium, IP55 |
| Dimensions / Weight | 270 × 270 × 333.5 mm / approx. 13.5 kg |
| Communication | Ethernet (RJ45/Fiber), RS-485, MODBUS, DNP3, IEC 61850 |
Key Advantages
- Maintenance-free operation (no calibration or carrier gas)
- Advanced diagnostics: Duval Triangle & Rogers Ratio built-in
- Extreme climate operation: –55 °C to +55 °C
- Wireless access: Integrated Wi-Fi for mobile devices
